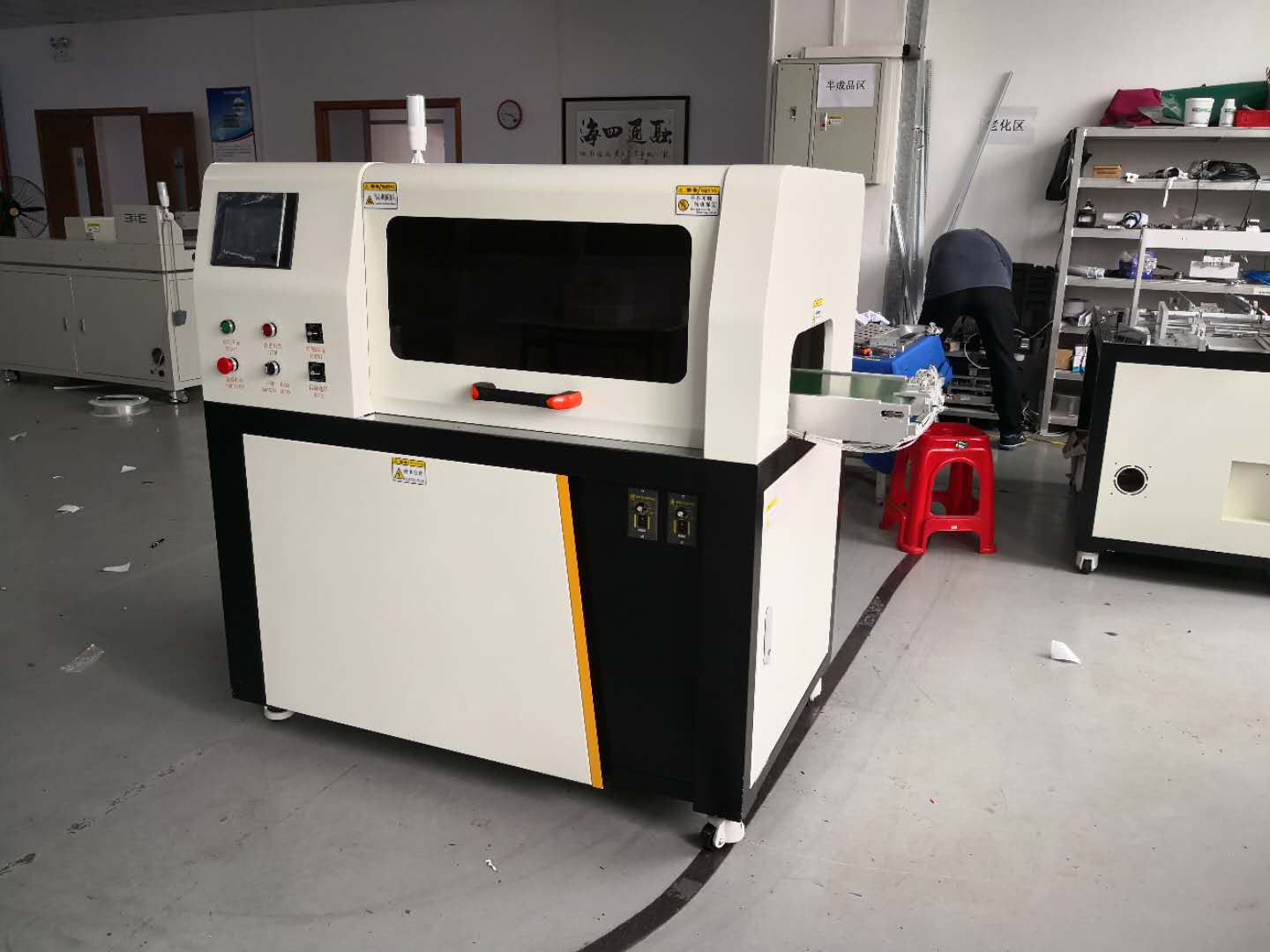

Fully Automatic Bidirectional PCB Depaneling Machine/Pcb Depanelizer YSV-5A

Name: Fully Automatic Bidirectional PCB Depaneling MachinePcb Depanelizer YSV5A
Brand: YUSHLI
Price: 1 USD

Brand Name : YUSHLI

Model Number : YSPE

Certification : CE

Place of Origin : SuZhou

MOQ : 1 set

Payment Terms : T/T L/C paypal west union credit card

Supply Ability : 20sets/ month

Packaging Details : plywood case

Price : USD

Track Height : PCB Standard track

PCB thickness : 0.5-2mm(PCB Curvature：≦3m m

pcb size : 300*300mm

PCB Component height : upper20mm lower10mm

positioning accuracy : ≦10um

Machine size : 800*1500*1650mm

Machine weigth : 400kg

Contact Now

Fully automatic bidirectional PCB depaneling machine/pcb depanelizer YSV-5A

Working environment

ØWork place: Clean room

Ø2.1 General conditions and requirements

ØThe ambient temperature (0 degrees to 40 degrees) and the humidity of the air fluctuate according to the season, the equipment essential functions need to operate under the following environment data:

ØIndoor temperature 0 degrees - 40 degrees

ØAir humidity 10% - 80%

ØEnvironmental noise 40dB - 80dB

ØVibration speed 1mm/s - 5mm/S

Speicifcation:

Mechanical System	PCB Size	300*300mm
	PCB thickness	0.5-2mm(PCB Curvature:≦3m m)
	PCB Component height	upper20mm lower10mm
	Drive equipment
	Exercise system
	positioning accuracy	≦10um
	Transport track	PCB Standard track
	Track Height	450±5mm
Machine parameters	power	AC220V 50Hz 500W
	Machine size	80015001650mm
	Weigth	400KG
Robot picking range	X Axis
	y Axis
	Z Axis
	W Axis

Fully Automatic Bidirectional PCB Depaneling Machine/Pcb Depanelizer YSV-5A
