Multiple Speed Automatic PCB Loader Machine , Touch Display Automatic Magazine Loader

Name: Multiple Speed Automatic PCB Loader Machine Touch Display Automatic Magazine Loader
Brand: YUSHLI
Price: 1 USD

Brand Name : YUSHLI

Model Number : YS-3525

Certification : CE

Place of Origin : SuZhou

MOQ : 1 set

Payment Terms : T/T L/C paypal west union credit card

Supply Ability : 2000sets/ month

Packaging Details : plywood case

Price : business negotiation

Delivery Time : 3 days to 7 days

pcb board Automatic Loader PCB size(L*W) : YS-3546-50*50-530*460

YS-539-Dimensions(L*W*H) : 1820*980*1250

YS-3546-Dimensions(L*W*H) : 1820*980*1250

YS-4533-Dimensions(L*W*H) : 1670*850*1250

YS-3525-Dimensions(L*W*H) : 1370*770*1250

Air pressure & consumption : 4-6bar,max 10L/min.

Transport height(mm) : 900±20(or customized)

Contact Now

Features:

Solid and stable design.

1. PLC control system.

2. Light touch LED membrane switch or touch screen control panel options available.

3. Top and bottom pneumatic clamps to secure magazine rack.

4. Pressure regulated on pusher’s to prevent board damage.

5. Self diagnostic error code display.

6. SMEMA compatible.

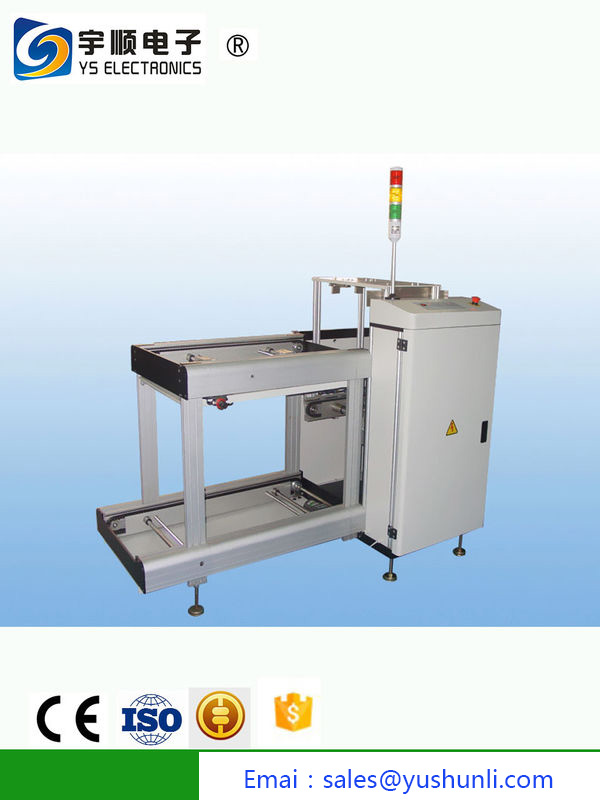

Multiple Speed Automatic PCB Loader Machine , Touch Display Automatic Magazine Loader

Technical Parameters :

Description	This equipment is used to collect PCBs into magazine at the end of SMT production line.
PCB loading time	Approx.6 seconds
Magazine change over time	Approx.25 seconds
Power source & consumption	100-230VAC(customized),1ph,max 300VA
Air pressure & consumption	4-6bar,max 10L/min.
Transport height(mm)	900±30(or customized)
Transport direction	L→R or R→L
PCB thickness(mm)	min 0.4mm
Magazine number	Transport up:1pcs,Transport down:1pcs(or customized)
Step pitch select	1-4(10mm step pitches)

Specifications:

Model NO.	YS-3525	YS-4533	YS-539	YS-3546
PCB size(L*W)	5050-350250	5050-460330	5050-530390	5050-530460
Dimension(LWH)	13707701250	16708501250	18209101250	18209801250
Magazine size(LWH)	355320563	460400563	535460570	535530570
Weight (kg)	145kg	185kg	205kg	225kg
