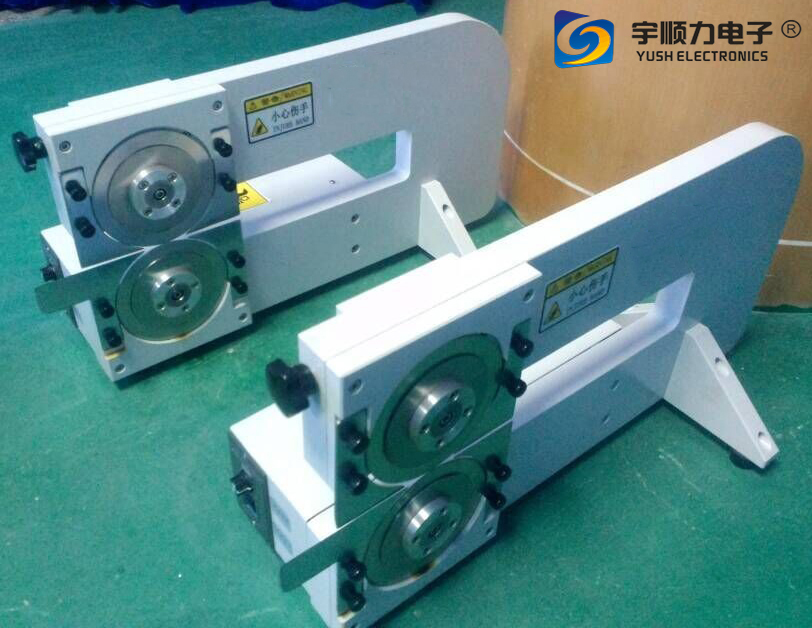

Aluminum Manual PCB Separator For PCB Assembly , 350mm Length

Name: Aluminum Manual PCB Separator For PCB Assembly 350mm Length
Brand: YUSH
Price: 1000 USD

Place of Origin : JiangSu

Brand Name : YUSH

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number : YSV-2M

MOQ : 1

Price : 1000

Packaging Details : Plywooden case

Delivery Time : 3 days

Payment Terms : T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability : 300 sets/ month

Contact Now

Aluminum Manual PCB Separator For PCB Assembly , 350mm Length

Pcb Separator Machine Specification:

Model No.:	YSV-2M
Machine Dimension:	342 x 378 x 806 mm
Maximum Length of Cutting:	350mm
Cutting Speed:	0-400mm / s
Cutting Thickness:	1.0-3.5mm
Voltage:	Manual
Weight:	40kg

Pcb Separator Machine Feature: 　

1. Working tips: PCB remain one position, move blade. this will avoid component damage.

2. Hand control the moving rate.

3. Accuracy distance adjusting between upper and lower blade.

4. Customized cutting length is available, up to 610mm.

5. Normally the blades can be used 1 year.

6. Accessories are available for purchase

Pcb Separator Machine Application:

Aluminum base board
Copper substrate
FR4
Glass fiber board

Aluminum Manual PCB Separator For PCB Assembly , 350mm Length

Pcb Separator Machine Maintenance:

1. Take off the power botton and clean the machine after finish working.

2. Be careful to protect the upper and lower blade.

3. Move the blades and protect them with machine oil.

4. Check the screw fastening time to time

Aluminum Manual PCB Separator For PCB Assembly , 350mm Length

YuSH Factory Pcb Separator Machine Delivery:

By air / sea / Fedex / DHL / UPS

Our forwarder partner or yours

Packing with wooden case

Packing fee: USD50 / pcb

Aluminum Manual PCB Separator For PCB Assembly , 350mm Length
