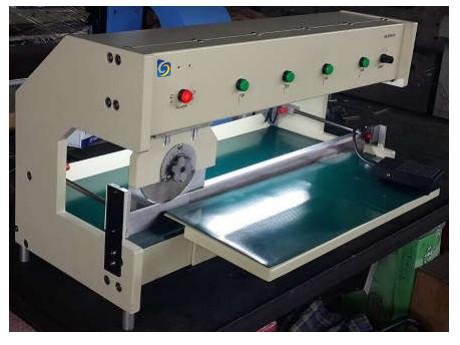

V Groove 5.0mm Thickness PCB Separator Machine

Name: V Groove 50mm Thickness PCB Separator Machine
Brand: YUSHUNLI
Price: 1000 USD

Brand Name : YUSHUNLI

Model Number : YSV-1A

Certification : CE ISO

Place of Origin : China Dongguan

MOQ : 1set

Price : USD1000~2900

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80Sets/Month

Delivery Time : 10-15work days

Packaging Details : plywooden case

Max Cutting Length : 460mm or 600mm

Dimension : 740*550*460mm or 880*420*320mm（L*W*H)

Cutting pooint : 0-100-200-300-400mm

Cutting Speed : 300mm/s ,500mm/s

Cutter point angle : 26~28°

Conveyor Belt (Options) : 1.5 m

Cutting thickness : 0.6-5.0mm

Minimum component distance from v-groove : 1mm

Voltage : 220 V or 110V, 50/60HZ, 250W

Max component height : 30 mm

Machine weight : 65kg / 85kg

Contact Now

0.6-5.0mm Thickness V Groove PCB Depanel Machine/PCB Board Separating Machine

Blades Moving PCB Separator

Features

1. Microcomputer program control, precise positioning and good stability.

2. Separate pre-scored PCB assembly without stress on either PCB or component;

3. One touch programming of cut length with digital display；

4. Separating speed is adjusted by a rotary knob；

5. Handle Intermittent scoring or cut-outs；

6. Board with projected component can be cut precisely；

7. Large stainless steel platform on both side of cutting lade prevents board wobble

and table height and angle are adjustable；

8. Clearance between circular and linear blades are adjustable to fit different groove

depth and compensates for blade wear out.

Application:

Suitablde for cut SMD aluminum PCB, PCB boards and FR4 fiberglass neatly,

effectively quickly. Easy to operate and causing no damdage to components on

boards. Imported high- speed steel blade with long service life, mainly applied in

circuit board industries such as led, SMT, etc.

Specs:

Max Cutting Length	460mm or 600mm
Dimension	740550460mm or 880420320mm(LWH)
Cutting pooint	0-100-200-300-400mm
Cutting Speed	300mm/s ,500mm/s
Cutter point angle	26~28°
Conveyor Belt (Options)	1.5 m
Cutting thickness	0.6-5.0mm
Minimum component distance from v-groove	1mm
Voltage	220 V or 110V, 50/60HZ, 250W
Max component height	30 mm
Machine weight	65kg / 85kg
Machine Warranty period	1 year

Range of application:

1.It is suitable to cut PCB
2. Printed Circuit Board
3. LED Aluminum plate/LED strip/LED light bar
4. Fiberglass panel/sheet

1.Available V-cut thickness: from 0.2mm to 2.0mm
2. Available PCB thickness: from 0.2mm to 3.2 mm
3. Maximum board length: 1300mm

Specifications:

1.For V-cut PCB, Aluminum PCB
2.PCB thickness:0.2-3.2mm
3.PCB length:0-1300mm
4.Fast speed and lowest press
5.Blade moving

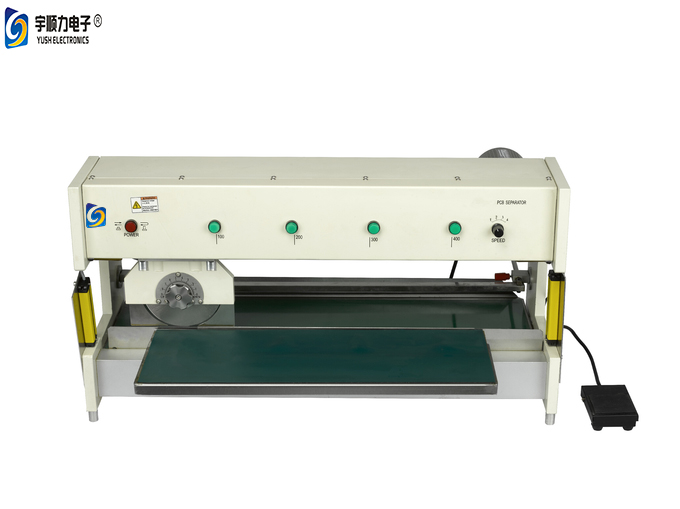

V Groove 5.0mm Thickness PCB Separator Machine
