460mm / 700mm / 1000mm / 1500mm PCB Depaneling Machine , Manual Circuit Board Cutter
Detailed Product Description
Specifications
Precision pcb depaneling machine
1. PCB Protection
2. Calibration Blade Setting
3. All Speed Control By Human
4. More Accurating
Specification:
| Model | Precision pcb depaneling machine YSV-1M |
| PCB Cutting Length (mm) | 460/700/1000/1500 |
| Cutting Speed (mm/s) | manual |
| Cutting Thickness (mm) | 0.6~3.5 |
| Size (mm) | 400*780*480 |
| Weight (Kg) | 55 |
| Guarantee | 1 Year |
| Delivery | 1 Day |
| Ability | 1000 Sets |
| Min. Order | 1 Set |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job. Dedicated
to high strength cutting, and excellent toughness, able to cut metal board .
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Feature:

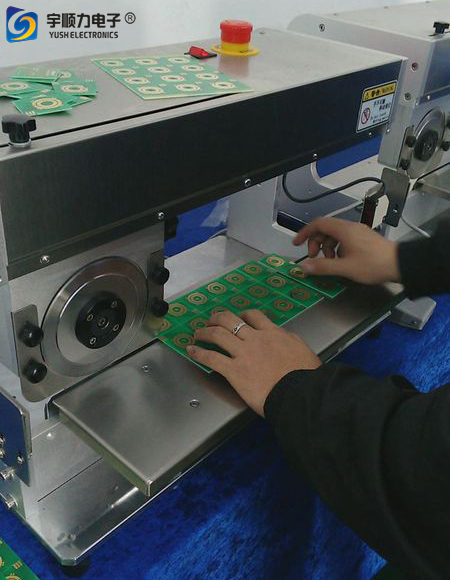

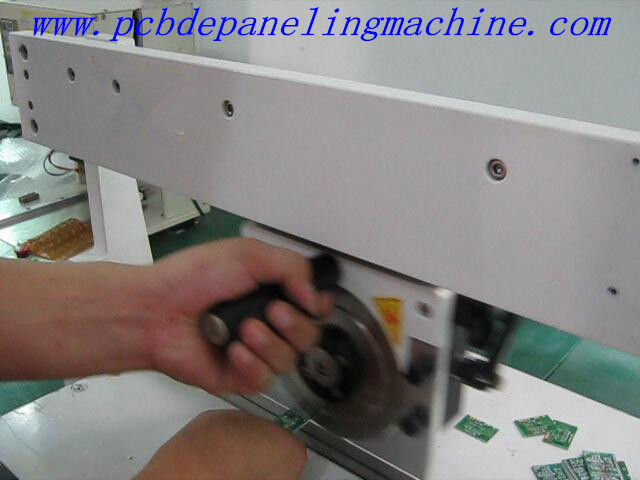

1. Round knife, manually cutting against lower linear knife, for reduced stress .
2. Separate pre-scored PCB assembly without stress on either PCB or component .
3. One touch programming of cut length with digital display .
4. Separating speed is adjusted by a rotary knob .
5. Handle Intermittent scoring or cut-outs .
6. Board with projected component can be cut precisely .
7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable .
8. Optional PCB conveyor belt to remove finished board .
9. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .
