3 Phase SMT Pick And Place Machine 10 Multi - Heads 36000 CPH Capability

Name: 3 Phase SMT Pick And Place Machine 10 Multi Heads 36000 CPH Capability
Brand: YAMAHA
Price: 1 USD

Brand Name : YAMAHA

Model Number : YS-12

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Business negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per year

Delivery Time : 15 days to 20 days

Packaging Details : Plywood package

Applicable Components : 0402(Metric base) to 32*mm components

Application range : SMD,Chips,etc.

Capability : 36,000CPH

Contact Now

72,000CPH Capability Smart Placement Second- hand Yamaha YS24 Pick and Place Machine

Below is the operation video of Pick and Place Machine on YuTube

https://youtu.be/IZX3HnE9fUg

Machine features:

Place of Origin:Japan

Brand Name:YUSH

Model SN: YS12

Through-put (Optimum):36,000CPH(0.1sec/CHIP Equivalent)

Applicable components:0402

Number of component types:120 types

Air supply source:0.45MPa or more, in clean, dry states

Weight:Approx. 1,340kg

Product parameter:

Model	YS12
Applicable PCB	L510W460mm to L50xW50mm
Through-put (Optimum)	36,000CPH(0.1sec/CHIP Equivalent)
Mounting accuracy (Yamaha's standard components)	Absolute accuracy (μ+3σ) : +/-0.05mm/CHIP Repeatability(3σ) : +/-0.03mm/CHIP
Applicable components	0402(Metric base) to 32mm components (Note 1)Correspondence since Jan., 2010
Number of component types	120 types(Max, 8mm tape reel conversion)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry states
External dimension(Note 2)	L1,254~W1,440~H1,450mm(cover top) L1,464(End of extension conveyor)xW1,542(End of guide for feeder carriage)xH1,450mm(cover top)
Weight	Approx. 1,340kg

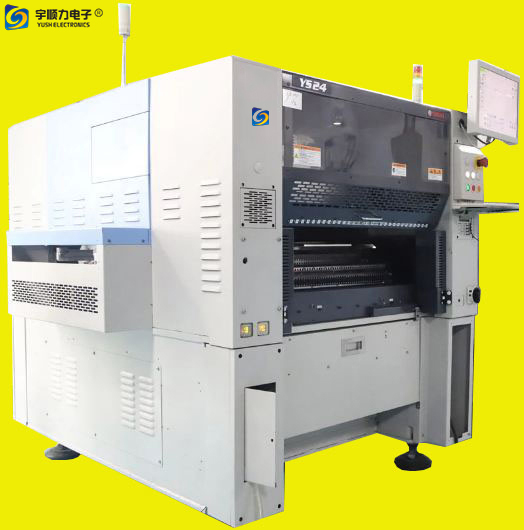

Demo for sale machine:

3 Phase SMT Pick And Place Machine 10 Multi - Heads 36000 CPH Capability

Packing method:
1) Standard box package for light and small item;
2) Strong wood package for heavy and large equipment;

Shipping way:
1) By air, for sample and small package, wordwide express like DHL, UPS, FedFX, EMS...
2) By sea, for large package and quantity;
3) By car or other ways as customer requested;

3 Phase SMT Pick And Place Machine 10 Multi - Heads 36000 CPH Capability
