Product Description:
PCB Depaneling Machine is a specialized panel divider for PCB depaneling. It is designed for quick and accurate PCB depaneling with a cutting thickness of 0.3mm, high speed, cutting angle of 90 degrees and cutting accuracy of ±0.1mm. It weighs only 130kg, making it easy to operate and highly efficient. This PCB Depaneling Device is ideal for a variety of applications such as PCB depaneling, cutting and trimming of PCB panels. It is the perfect solution for PCB panel divider and depaneling needs.
Features:
Adopt the latest gas-electric light-weight design,complete the cutting stroke without shear stress at one time.
The cutting bpard stroke is below 1M,and there is no worry about operationsafety.The cutter is made by high-speed precision grinding,which can be used repeatedly.The cutting rate is 1 second/one division,controlled by the foot pneumatic switch.
The cutting blade group is activated passively,mastering the cutting line and position,the cutting stress is small,and it is not easy to form cracks .
Customizable length
Specification Parameter:
| Maximumsub-boardlength | 200/330/400mm Can be ordered indefinitely length |
| Sub-boardthickness | 0.3-3.5mm |
| Voltage | 220V |
| Working Pressure | 0.5-0.7Mpa |
| Machine Weight | 130kg |
| Dimensions | 700*300*450 |
Application:

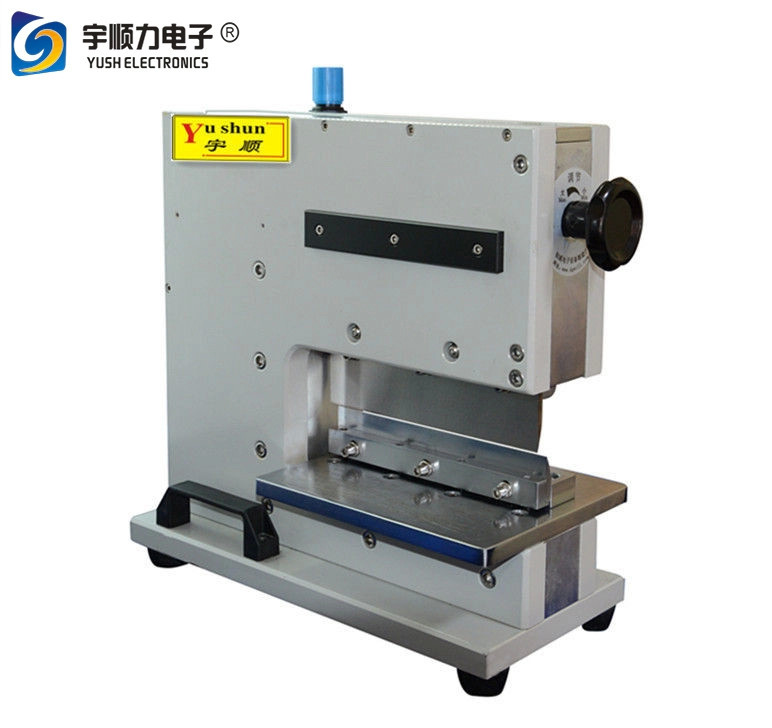

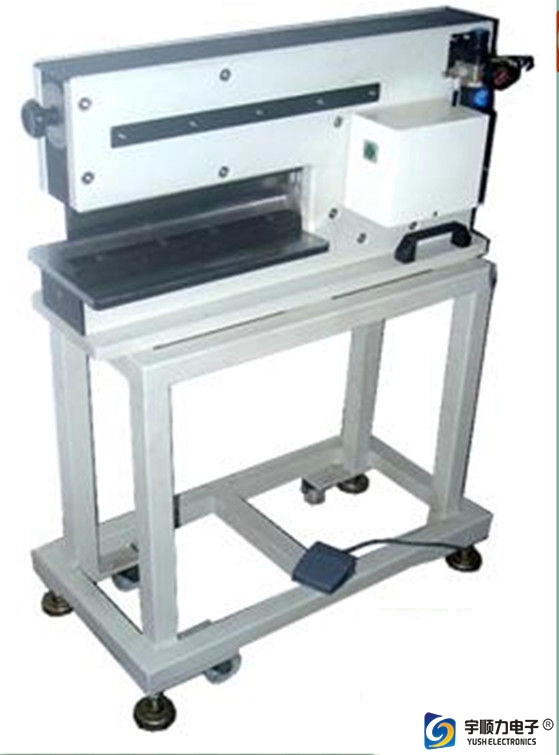

The Yushunli Ysvc-2 PCB Depaneling Machine is a type of Automatic PCB Panel Separator specifically designed for cutting PCB boards into individual components. This PCB depanel machine has been certified by CE and has a minimum order quantity of 1set. The price for this machine is 4000 and it comes packaged in a woodencase. The delivery time is 3-5 days and payment terms are 100%T/T. This product has a supply ability of 100sets, a weight of 130kg, and its operation is very easy. Additionally, this machine can cut PCB boards with a 90 degree angle and it is powered by 220V.
Support and Services:
Technical Support and Service for PCB Depaneling Machine
Our company provides technical support and service for PCB Depaneling Machine. We have a professional team of engineers, technicians, and support staff to provide comprehensive solutions to any problems you may have with PCB Depaneling Machine.
We provide technical support and service for PCB Depaneling Machine by phone, email, or on-site visits. Our team can help you with troubleshooting, installation, maintenance, and repairs. We also provide training for customers on how to use the machine and provide advice on how to optimize your production process.
If you have any questions or need assistance with your PCB Depaneling Machine, please contact us and our team will be happy to help you. We are committed to providing you with the best service and support possible.
Packing and Shipping:
Packaging and Shipping for PCB Depaneling Machine
The PCB Depaneling Machine is carefully packaged and shipped to ensure safe arrival.
The machine is secured to a heavy-duty shipping pallet and surrounded by packing foam.
A box is used to cover and protect the machine from any external elements.
The box is marked with the product name and manufacturer’s logo.
A tracking number is provided so that customers can monitor the progress of their shipment
