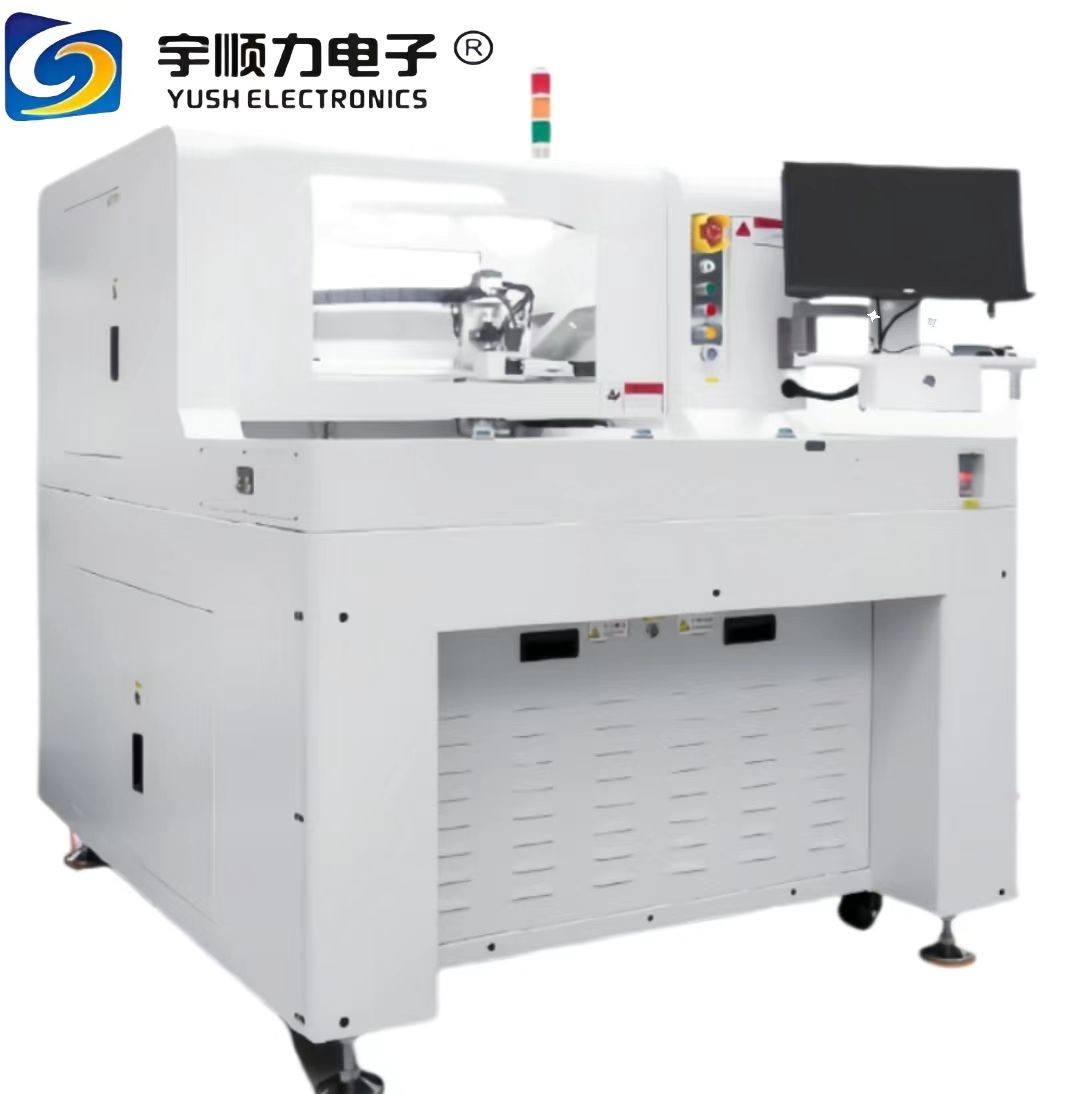

PCB Depaneling Router Machine YSL-5700M
Features:
1,New CCD system,new vision system can correspond to all kinds of pcb mark.with visual counterpoint correction function.
2,The sensor can monitor the milling cutter state in real time, and effectively prevent the continuous operation of the cutter.
3,Using high speed spindle, cutting stress is greatly reduced, precision is high, inertia is small, and response is fast.
4,Ion air gun will remove static electricity on PCB surface and prevent dust from adsorbing on PCB.
5,Dual platform structure, can deal with different products at the same time, while the dual platform can be combined into a single platform, enhance the flexibility of equipment.
6,Adopt CNC special controller,high stability and strong anti-interference.
7,The separated vacuum dust collector adopts high efficiency motor with high suction and low noise.
8, Humanized operation system design, simple operation, flexible.
Specifications of PCB Depaneling Router Machine
| Model | YSL-5700M | YSL-5700L | YSL-5700LL |
| Pcb Size(Double platform,Special size optional) | 290*350mm | 350*450mm | 450*500mm |
| PCB thickness | 0.3~6.0mm |
| Weight(with vacuum cleaner) | 1000KG |
| Dimension | 1075*1430*1460mm | 1125*1530*1460mm | 1225*1530*1460mm |
| Dust Collection Method | Vacuum cleaning |
| Air volume of vacuum cleaner | 28~35cm3/min |
| Vacuum cleaner Dimension | 640*785*1760mm |
| Voltage of the Dust Collector | 380V,50/60HZ,3kw |
YUSH Electronic Technology Co.,Ltd was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
